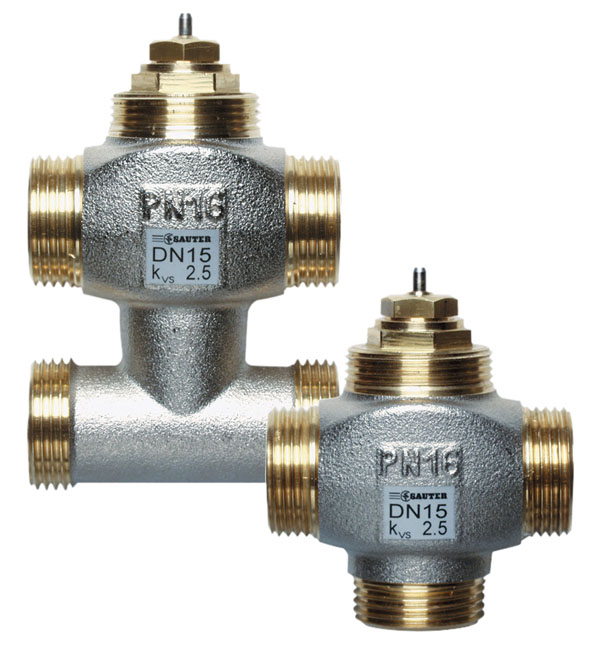

3-way unit valve, PN 16
BUL
How energy efficiency is improved
Linear mixture and no loss through leakage in the control passage for energy-efficient regulation
Caracteristicas
-
Ideally suited for AXF 217S, AXM 217(S), AXS 315S and AXT 301 unit valve actuators
-
Flat-sealing standard version or version with clamping ring screw fitting for pipe Ø 15 mm with DN 10
-
Valve with male thread as per DIN EN ISO 228-1, class B
-
Special model for fan coil units with cast-on bypass T-piece
-
Control passage A–AB is closed when the spindle is moved in
-
Can be used as a control valve and, thanks to its tight-sealing third passage, as a distribution valve
-
Valve body made of nickel-plated cast brass
-
Plug with EPDM soft seal for control passage and mixing passage
-
Stainless-steel spindle
-
Stuffing box with double O-ring seal
